Dynamic Loading Model Box System

System Description

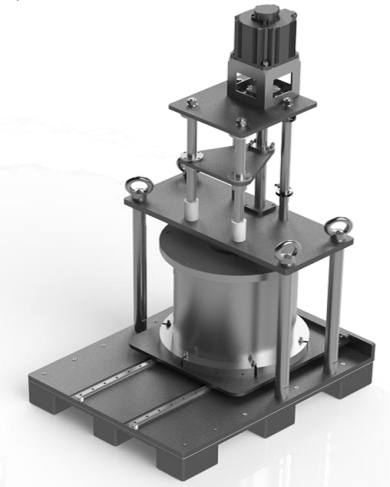

The Dynamic Loading Model Pile Testing System is capable of conducting model tests on vertical cyclic loading of pile foundations under various load combinations, targeting foundation soils with different consolidation states and various pile types. It is applicable to homogeneous or heterogeneous foundations such as saturated soft soil, ordinary cohesive soil, silt and sand.

System Features

•  High-precision servo motor control.

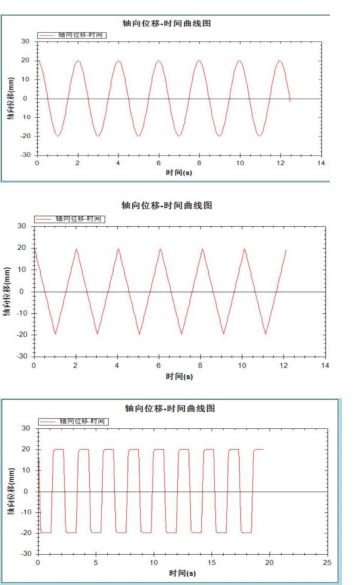

• Developed with C# programming language to achieve high-speed data acquisition and control. It can well reflect the nonlinear relationship between pile top load and displacement as well as the cyclic degradation of bearing capacity.

• The system features accurate output load waveforms, high sensitivity and excellent stability of the measurement system, making it suitable for research on vertical cyclic loading characteristics of pile foundations under multiple working conditions.
